Fiber optic pigtails are essential components in fiber optic networks, used to connect fiber optic cables to patch panels or equipment. They consist of a fiber cable terminated with a connector on one end, while the other end is left open for splicing. This guide provides an overview of fiber optic pigtails, their construction, applications, and specifications.
Fiber optic pigtails are available in various configurations to suit different network requirements. They can be categorized based on fiber type, cable type, and connector type.
A tight-buffered fiber with a 900um diameter.
A fiber cable with a 2mm outer jacket.
A fiber cable with a 3mm outer jacket.
Singlemode:
Typically used for long-distance communication, with a core diameter of 9/125um.
Multimode:
Suitable for shorter distances, available in 50/125um, 62.5/125um, OM3, and OM4.

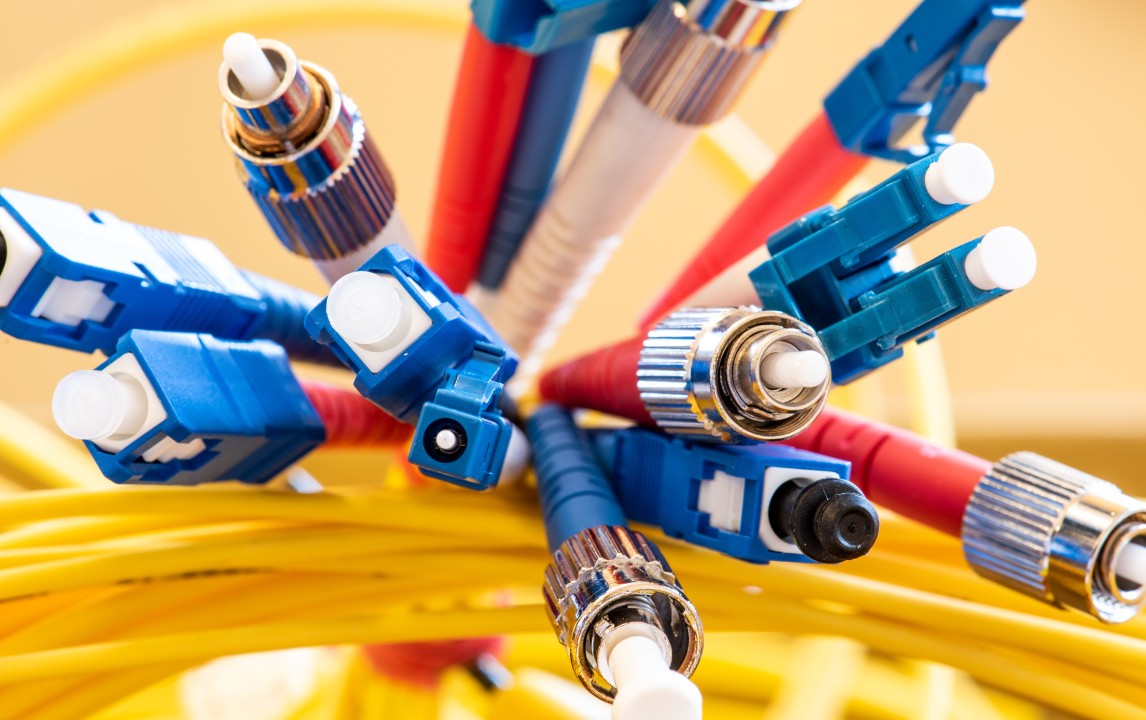

Common connector types include ST, SC, FC, LC, MTRJ, SMA, and E2000. Each connector type has its specific application and compatibility.
Optical Fiber:
The core component, available in singlemode or multimode.
900um Buffer:
A protective layer around the fiber.
Aramid Yarn:
Provides tensile strength, applicable only for 2mm or 3mm jacketed cables.
LSZH Jacket:
A low-smoke, zero-halogen jacket for safety, applicable only for 2mm or 3mm jacketed cables.
900um Buffer:
Yellow for singlemode, white for multimode (50/125um), orange for OM1 (62.5/125um), turquoise for OM3, and rose for OM4.
3mm Jacket:
Yellow for singlemode, orange for multimode (OM1 & OM2), turquoise for OM3, and rose for OM4.
