Fiber Distribution Hub
Document Number: DS No.:10100VI Revision: 00

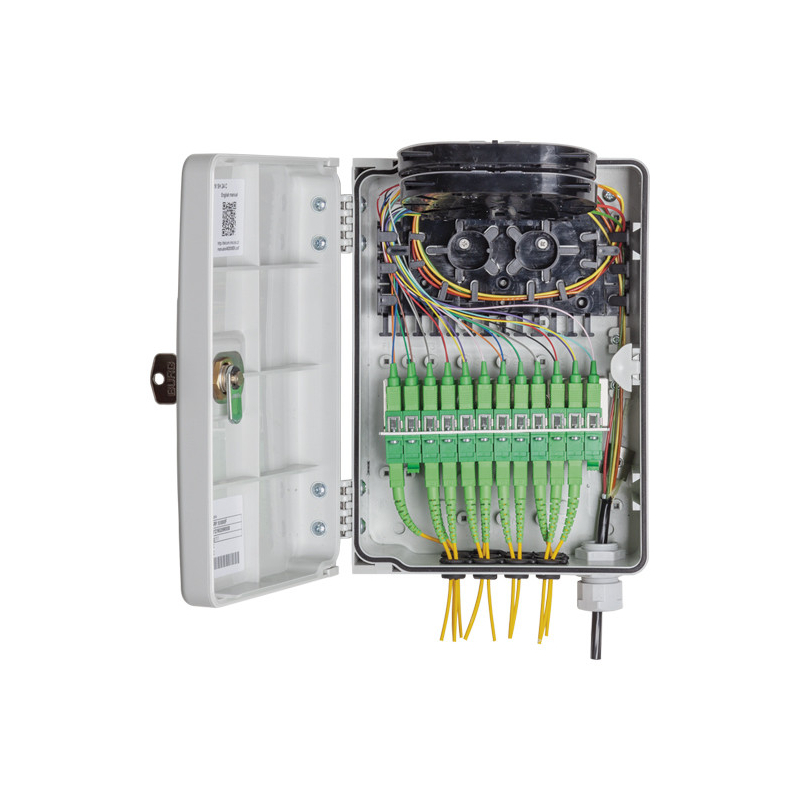

The Double Door FAT is a next-generation fiber optic distribution solution designed for splicing and patching. It facilitates the easy integration of passive optical components and is suitable for moderate to harsh outdoor environments, meeting IP65 standards. The hub features a swiveling inlay capable of accommodating up to 24 splices and connections with SC or LC-D connectors. It also provides ample storage for loose tube over-length or loop storage.
Key Features
Integrity
- Terminations designed, tested, and certified to Telcordia GR-326.
- Guaranteed insertion loss of 0.2 dB or less, exceeding industry standards.
- Fiber cable certified to Telcordia GR-20 and GR-409.
- Designed, tested, and certified to Telcordia GR-3125.
- Powder-coated for additional protection.
- Stainless steel fasteners used on all cabinets.
Specifications
| Specification | 144-Port | 288-Port | 432-Port | 576-Port | 864-Port |
|---|---|---|---|---|---|
| Cabinet Dimensions | 22.29″ H x 16.96″ W x 18.51″ D | 35.11″ H x 18.5″ W x 16.98″ D | 37.83″ H x 21.25″ W x 18.44″ D | 35.11″ H x 33.20″ W x 18.47″ D | 37.83″ H x 42.05″ W x 18.47″ D |
| Weight | 40 lbs. (18.14 kg) | 54 lbs (24.49 kg) | 66 lbs (29.94 kg) | 86 lbs (39.01 kg) | 95 lbs (43.09 kg) |
| Port Density | 144 | 288 | 432 | 576 | 864 |
| Max Feeder/Express Ports | 24 | 48 | 48 | 96 | 96 |
| Cable Entrances | 6 | 6 | 6 | 12 | 12 |
| Splitter Slots | 4 | 9 | 14 | 18 | 28 |
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC | ||||
| Cable Types | Indoor/Outdoor, Outdoor (Riser/Non-Rated), Outdoor Armoured (Riser/Non-Rated) | ||||
| Door Locks | 2 per door | ||||
| Venting | Built-In Replaceable Roof Vent | ||||
| Material | CRCA with powder coating (Colour customizable) |
Document Number: DS No.:10100VI Revision: 00
The Double Door FAT is a next-generation fiber optic distribution solution designed for splicing and patching. It facilitates the easy integration of passive optical components and is suitable for moderate to harsh outdoor environments, meeting IP65 standards. The hub features a swiveling inlay capable of accommodating up to 24 splices and connections with SC or LC-D connectors. It also provides ample storage for loose tube over-length or loop storage.
Key Features/Benefits
- Dimensions:
- Height: 750mm
- Width: 650mm
- Depth: 325mm
- Construction:
- Metal door with a 3-point lock.
- Cable entry provided at the bottom panel.
- Lockable front and rear doors with 180° opening.
- Included Components:
- 2 Nos. of LGX 1×6 Splitters.
- 34 Nos. of SCAPC patch cords.
- Provision for 12x LGX modules with 1×16 splitters.
- 252x SCAPC colored pigtails.
- Additional Features:
- Fully assembled and configured with accessories.
- Meets IP44 protection grade.
- Powder-coated with a matt finish (Colour: RAL 7035).
Components/Accessories
LGX Module with 1×16 Splitters SCAPC:
- Material: ABS plastic
- Dimensions: 130 x 100 x 33mm
- Loaded with 1×16 SCAPC Splitter & adapters.
Ordering Information
Part Code: LTSA252F
Item Description: Outdoor Cabinet 252F SCAPC FP
